Cowrie Honeypot

---

tags: Cowrie Honeypot ssh_Honeypot

---

Questo strumento ci permette di creare un honeypot di un server ssh, in modo tale che se un attaccante provasse ad attaccare la nostra porta ssh in realtà attaccherebbe il nostro honeypot e tutte le nostre attività verrebbero monitorate, inoltre anche se riuscissimo a compromettere il server sarebbe una compromissione dell’honeypot e non del vero server SSH.

Cowrie serves as an SSH and Telnet honeypot, capable of capturing brute-force attacks and the actions taken by attackers within the shell. When operating in medium interaction mode, it replicates UNIX behavior using Python. In high interaction mode, acting as a proxy, it allows observation of attacker actions on another system via SSH and Telnet.

Here, we will use Cowrie honeypot to capture incoming malicious traffic from the attacker’s machine (here, Parrot Security).

1. Click Ubuntu to switch to the Ubuntu machine and login with Ubuntu/toor.

2. In the Ubuntu machine, we will deploy Cowrie honeypot.

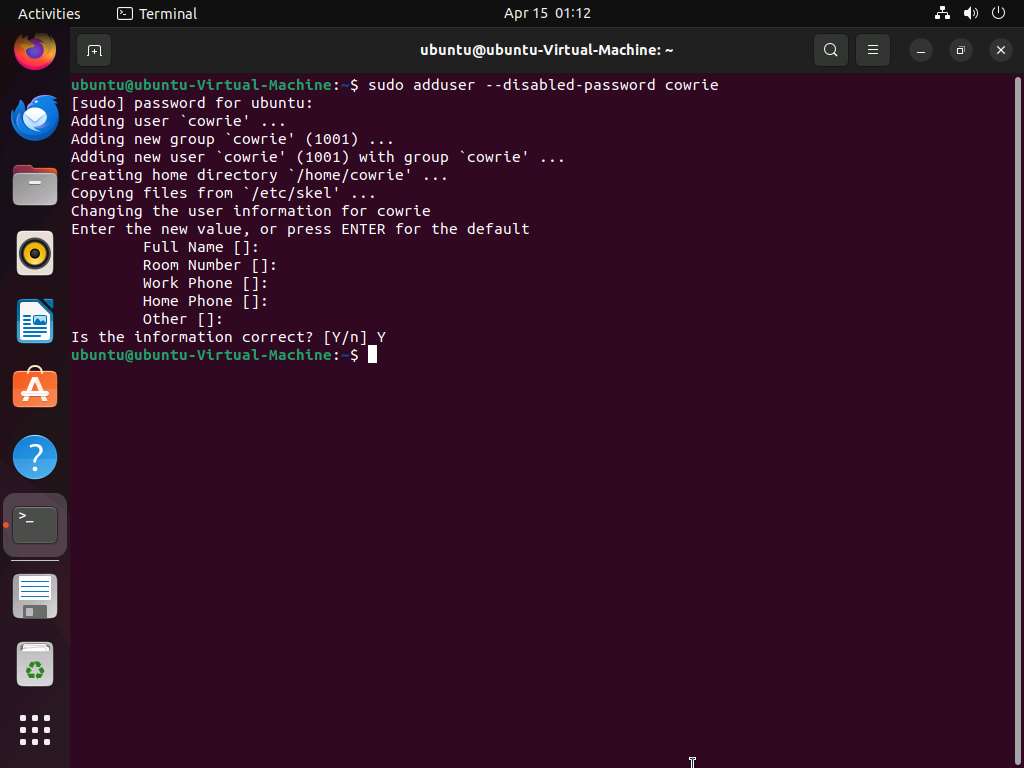

3. Open a Terminal window and execute sudo adduser —disabled-password cowrie to create a new user named cowrie without password (When prompted, enter the password toor, The password that you type will not be visible). Close the terminal.

   Leave Full Name, Room Number, Work Phone, Home Phone, Other blank and type Y when prompted Is the information correct? [Y/n].

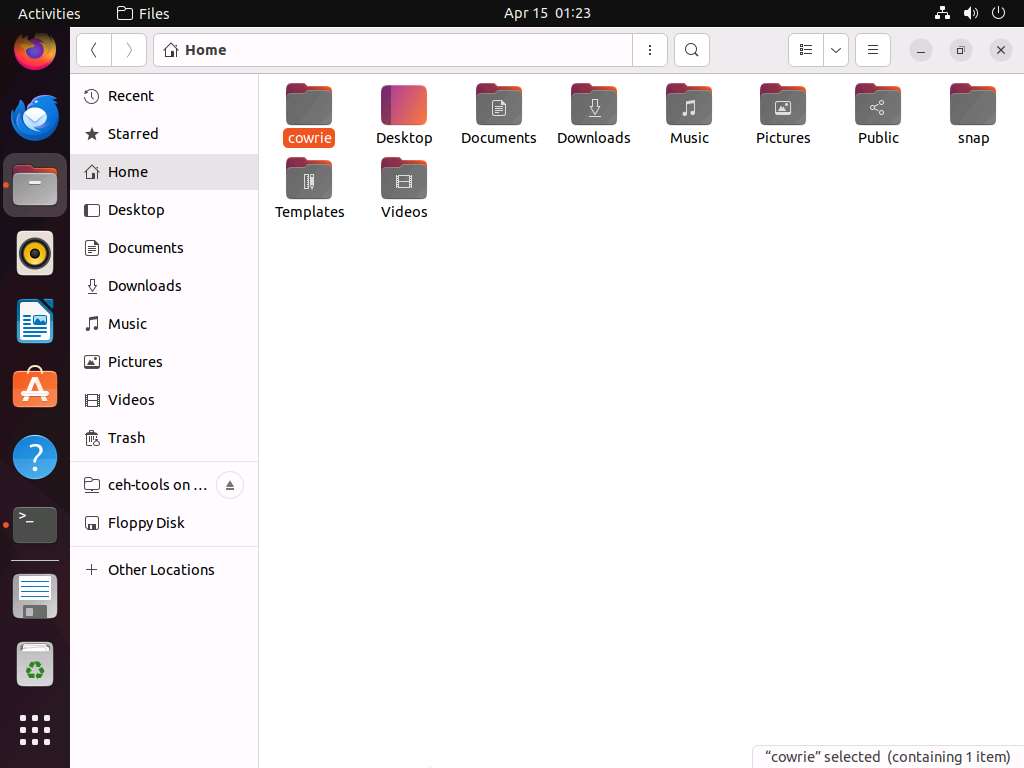

4. Click on Files icon and navigate to ceh tools on 10.10.1.11/CEHv13 Module 12 Evading IDS, Firewalls, and Honeypots/Honeypot Tools and copy cowrie folder and paste it into /home/ubuntu.

   If ceh-tools on 10.10.1.11 option is not present then follow the below steps to access CEH-Tools folder:

   • Open Files and navigate to the + Other Locations from the left pane
   • In the Connect to Server field, type smb://10.10.1.11 and press Enter to access Windows 11 shared folders.
   • The security pop-up appears; enter the Windows 11 machine credentials (Admin/Pa$$w0rd) and click Connect.

   • The Windows shares on 10.10.1.11 window appears; double-click the CEH-Tools folder.



5. Open a new terminal and execute sudo su to run the programs as a root user (When prompted, enter the password toor). Now, jump into Cowrie directory using cd cowrie command.

   The password that you type will not be visible.

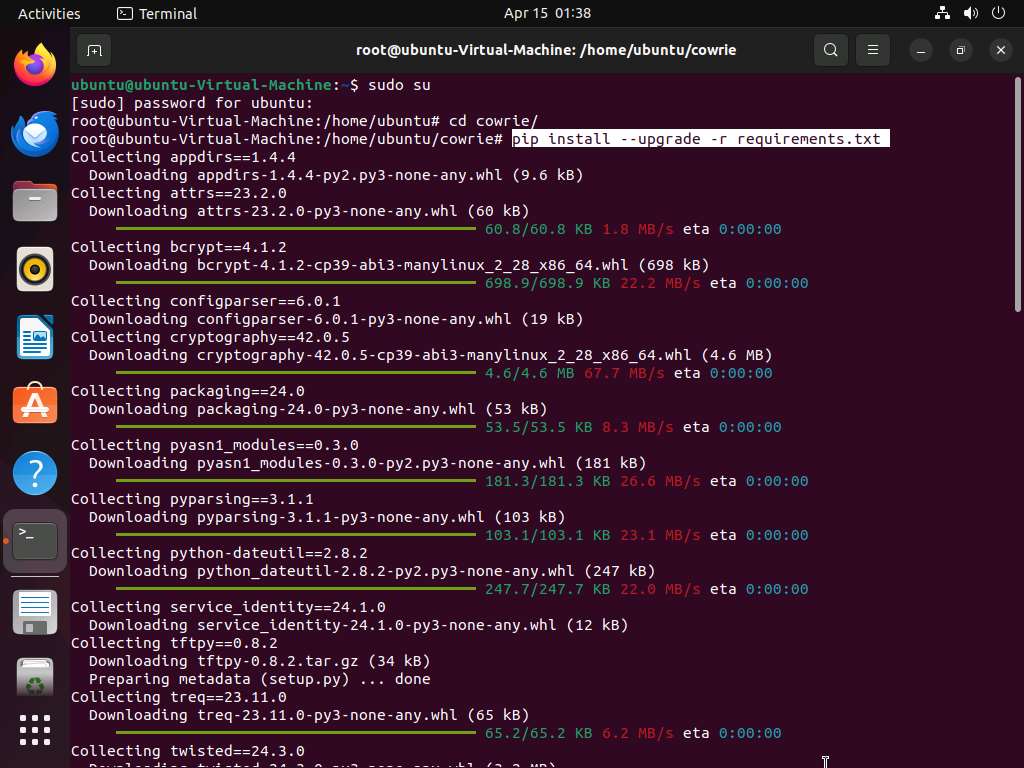

6. Run pip install —upgrade -r requirements.txt to install all the required dependencies.



7. Run cd .. command to jump back to /home/ubuntu and run chmod -R 777 cowrie to modify the file permissions of cowrie folder.

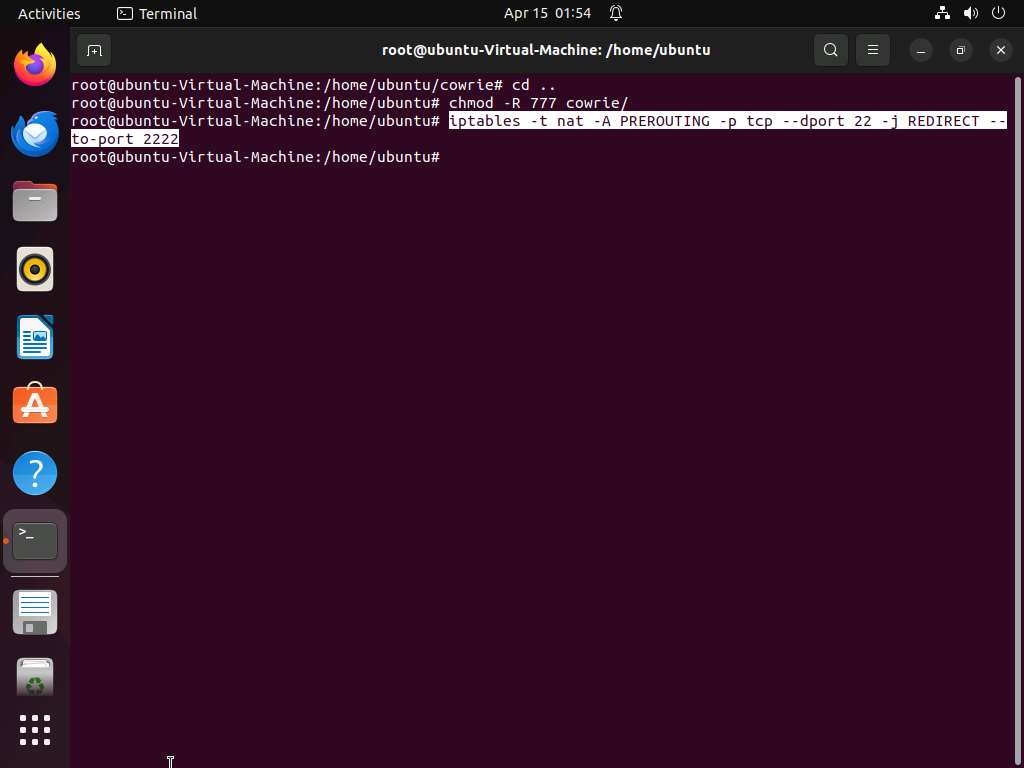

8. Run iptables -t nat -A PREROUTING -p tcp —dport 22 -j REDIRECT —to-port 2222 to redirect the traffic coming on port 22 to port 2222. This redirection channels incoming traffic to a Cowrie honeypot, ensuring the protection of the primary system by segregating potential risks.

   Here,

   • -t nat specifies the table in which the rule should be added. Here, it is the network address translation (NAT) table.
   • -A PREROUTING specifies that the rule should be appended to the PREROUTING chain. The PREROUTING chain is traversed by packets as soon as they come in, before any routing decisions are made.
   • -p tcp specifies the protocol to which the rule should apply. Here, it is TCP.
   • —dport 22 specifies the destination port. Here, it is port 22, which is commonly used for SSH (Secure Shell) connections.
   • -j REDIRECT specifies the target of the rule. It instructs iptables to redirect the packet to another destination instead of its original destination. Here, the destination will be redirected.
   • —to-port 2222 specifies the port to which the packet should be redirected. Here, it is port 2222. So, any incoming TCP packets to port 22 will be redirected to port 2222.

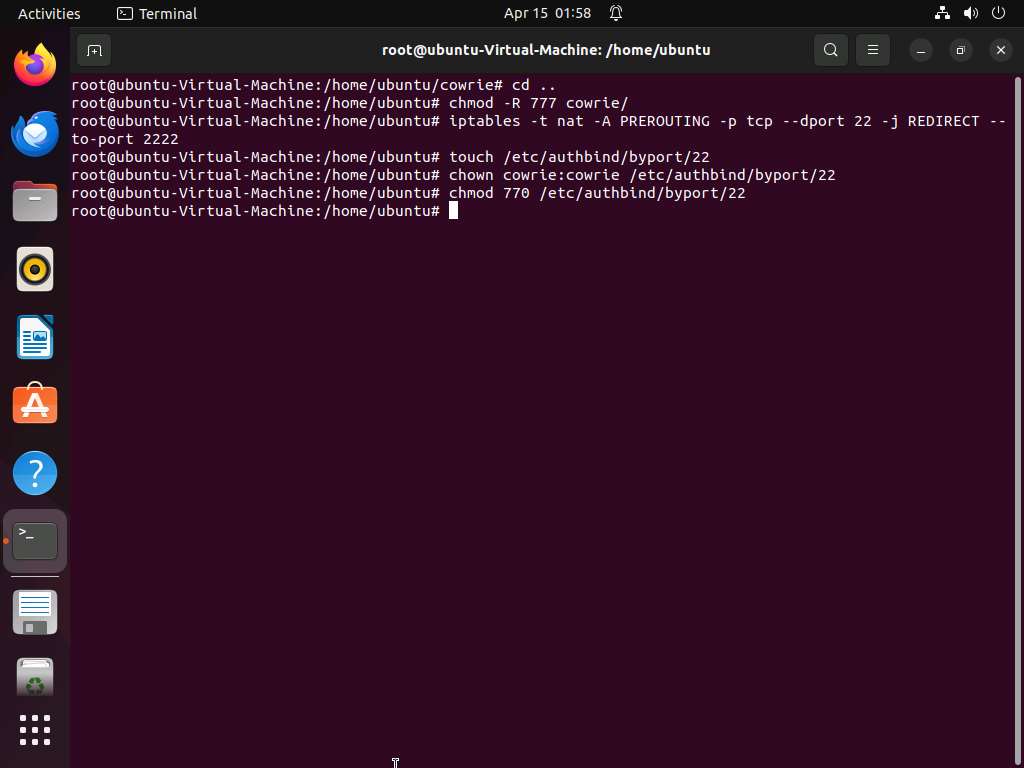

9. To facilitate enhanced security measures, run the following commands to configure authbind, enabling the Cowrie honeypot to operate on port 22 without requiring root privileges:

   • Run touch /etc/authbind/byport/22 to create an authbind configuration file for port 22, essential for granting permission to the Cowrie honeypot to listen on that specific port.
   • Run chown cowrie:cowrie /etc/authbind/byport/22 to change the ownership of the authbind configuration file for port 22 to the user and group “cowrie,” ensuring proper access permissions for the Cowrie honeypot to operate on that port.
   • Run chmod 770 /etc/authbind/byport/22 to set appropriate permissions on the authbind configuration file for port 22, ensuring that the Cowrie honeypot has the necessary access to operate on the port without requiring root privileges.

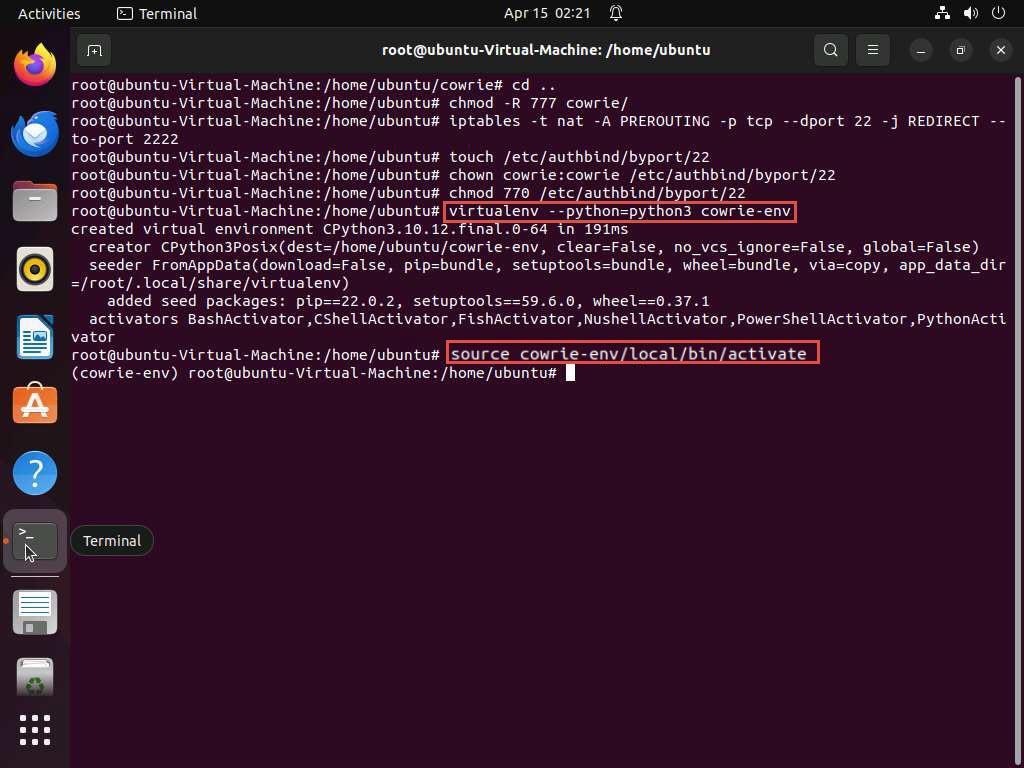

10. Run virtualenv —python=python3 cowrie-env to create a virtual environment. Run source cowrie-env/local/bin/activate to activate the environment.



11. Exit the root privileged terminal using exit command. Navigate to cowrie directory using cd cowrie command. Here, run bin/cowrie start to initiate the Cowrie honeypot and begin monitoring and logging incoming traffic for security analysis and threat detection purposes.

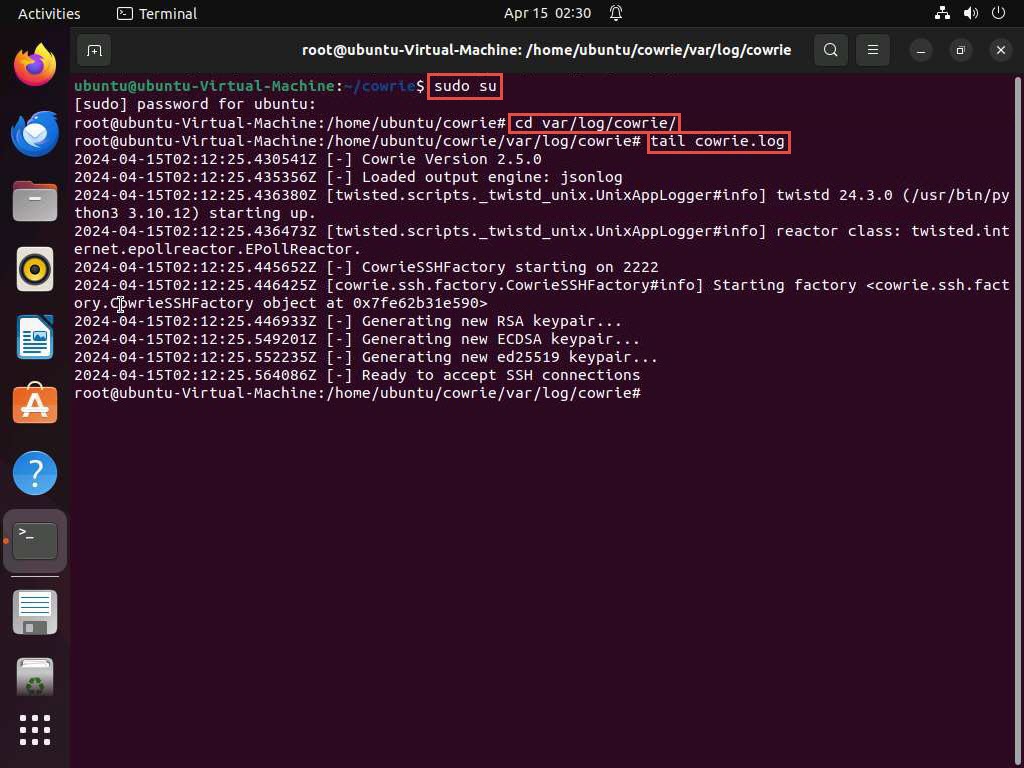

12. In the terminal, acquire root privileges using sudo su command and execute cd var/log/cowrie/ to navigate to var/log/cowrie. Now, run tail cowrie.log to view the log file.

    Here, Ready to accept SSH connections confirms that the honeypot is successfully setup.



13. Now, we will use Parrot Security machine as an attacker to attack the honeypot running SSH service. To do so, firstly we will scan the target machine for open SSH port.

14. Click Parrot Security to switch to Parrot Security machine and use toor as password. Open a Terminal window and execute sudo su to run the programs as a root user (When prompted, enter the password toor).

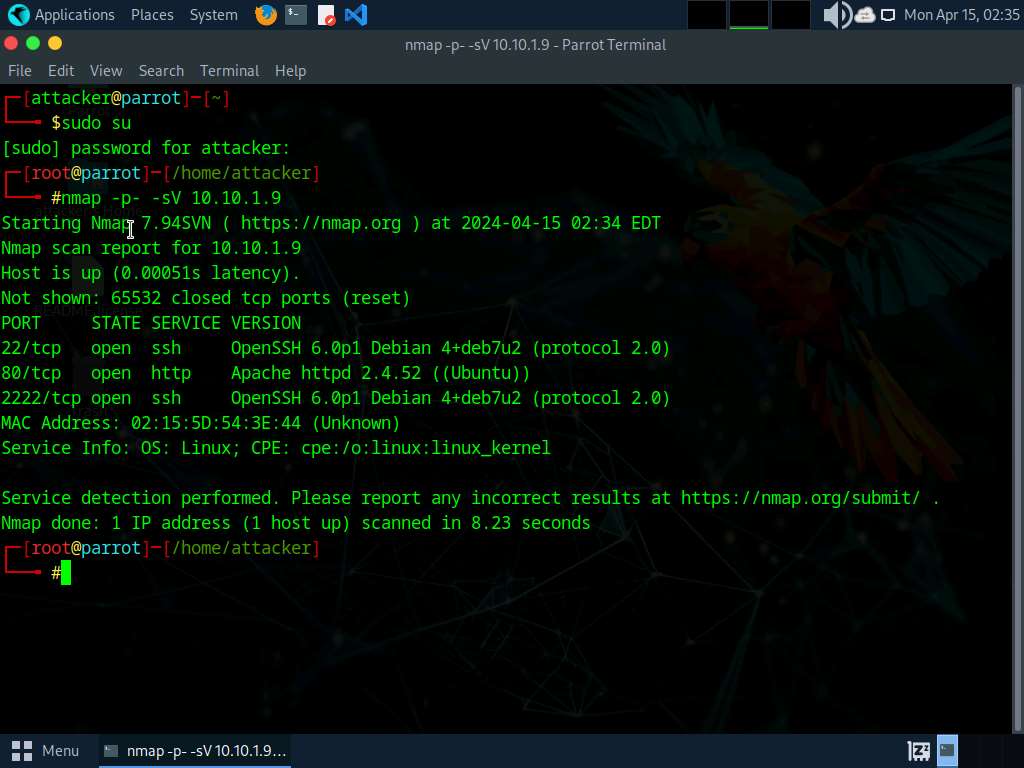

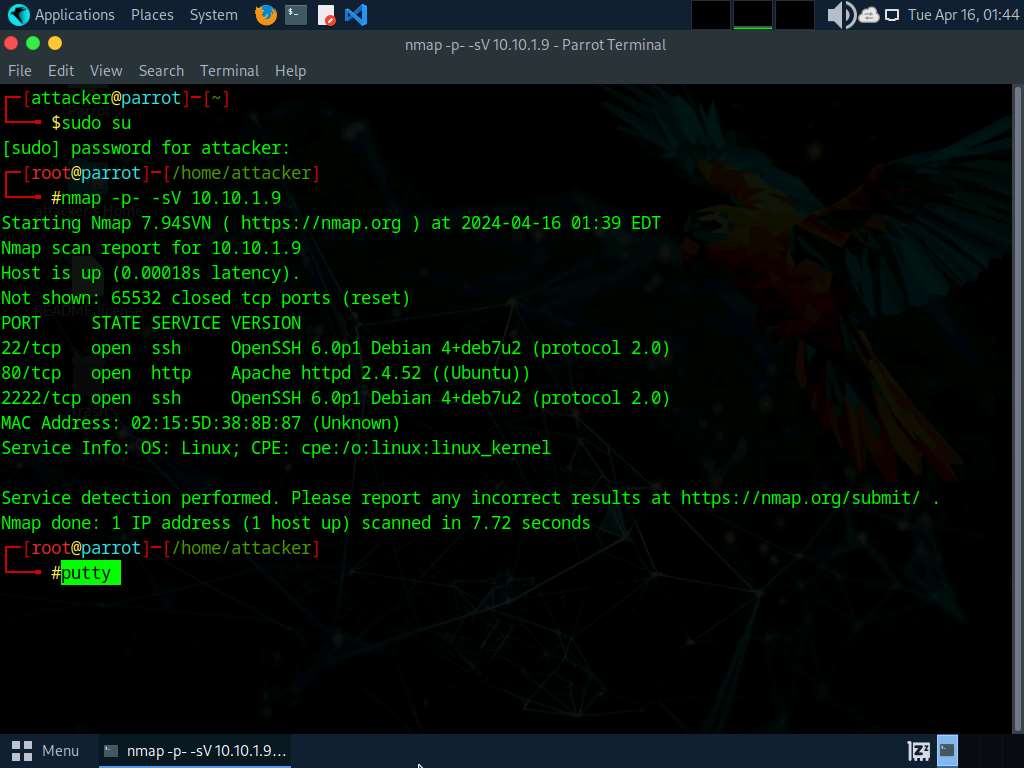

15. In the terminal, run nmap -p- -sV 10.10.1.9 command to discover open ports and services.

16. You can observe that the port 22 is open and is the default port used for SSH connection. Since the port is open we will try to connect to the machine using SSH.

    Here, you can also observe the SSH service running on port 2222 that is a honeypot that we have deployed. Attackers will target the SSH service running on default SSH port (22).



17. To establish a connection to the target machine via SSH, we will use PuTTY. Initiate the PuTTY interface by executing putty command.

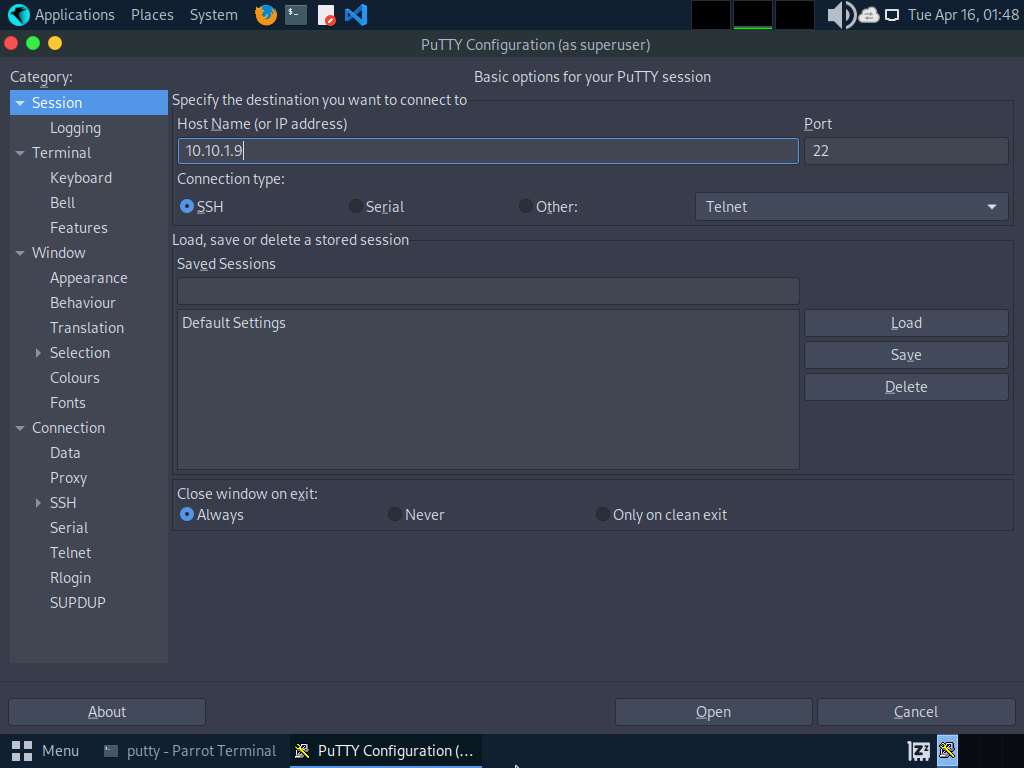

18. The PuTTY Configuration (as superuser) window appears. Enter the IP address of the target machine (here, 10.10.1.9) in the Host Name (or IP address) field, and proceed by clicking on Open button.

    PuTTY Security Alert (as superuser) window appears, click Accept.

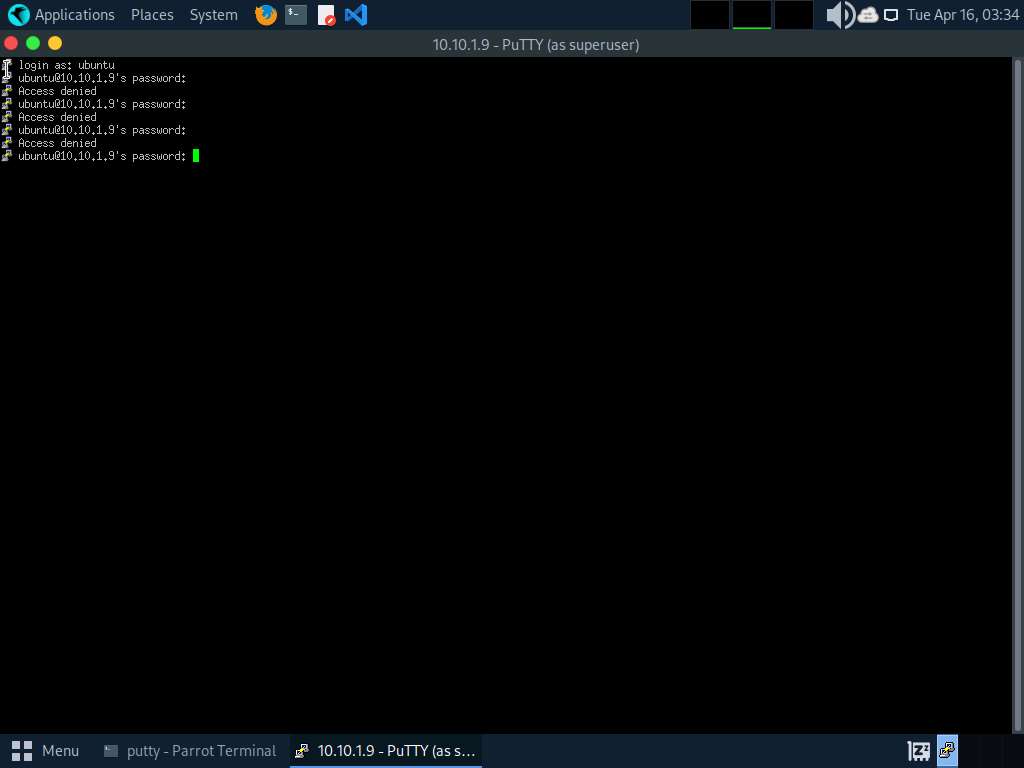

19. In 10.10.1.9 - PuTTY (as superuser) window, type ubuntu in login as field and password as toor, it responds with Access denied. Try a random set of passwords to bruteforce into the target machine.



20. Click Ubuntu to switch back to Ubuntu machine, and run tail cowrie.log. Here, observe the logs generated when the attacker tried to connect to the SSH service on the Ubuntu machine using PuTTY. These log entries serves as evidence of the attacker’s unauthorized access attempts.



21. Click Parrot Security to switch back to Parrot Security machine. In the terminal window, open the PuTTY interface by executing putty command.

22. In the PuTTY Configuration (as superuser) window, type the IP address of the target machine (here, 10.10.1.9) under Host Name (or IP address) section and click on Open.

    If PuTTY Security Alert (as superuser) window appears, click Accept.

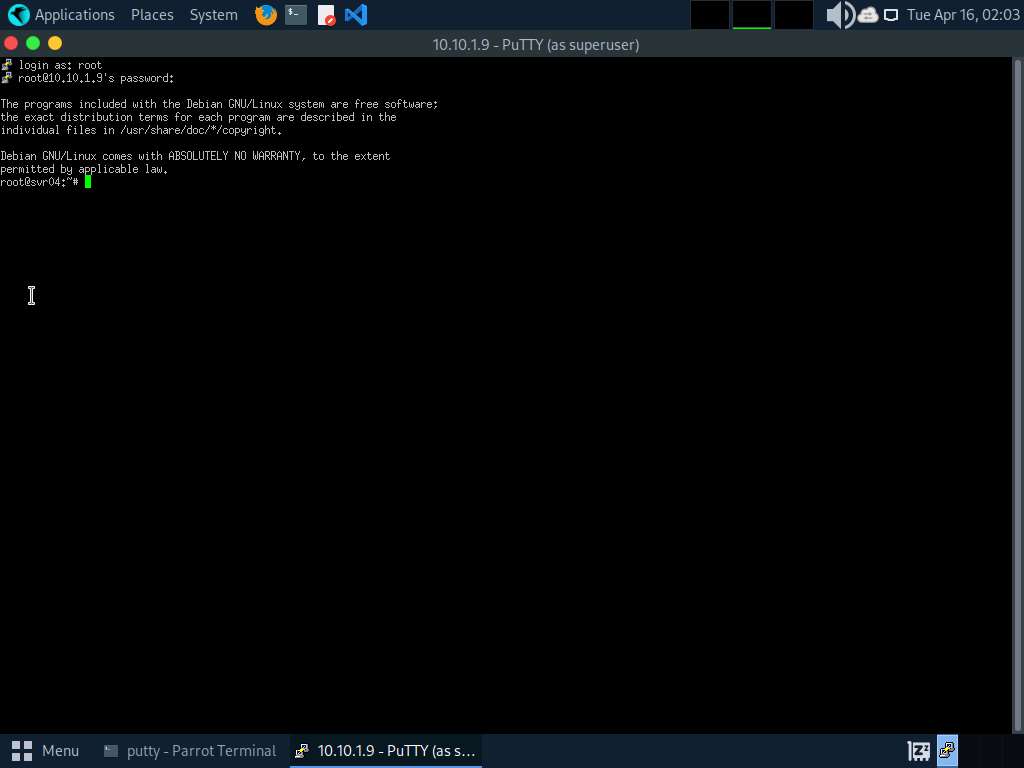

23. In 10.10.1.9 - PuTTY (as superuser) window, type login as root and type a random password of your choice.

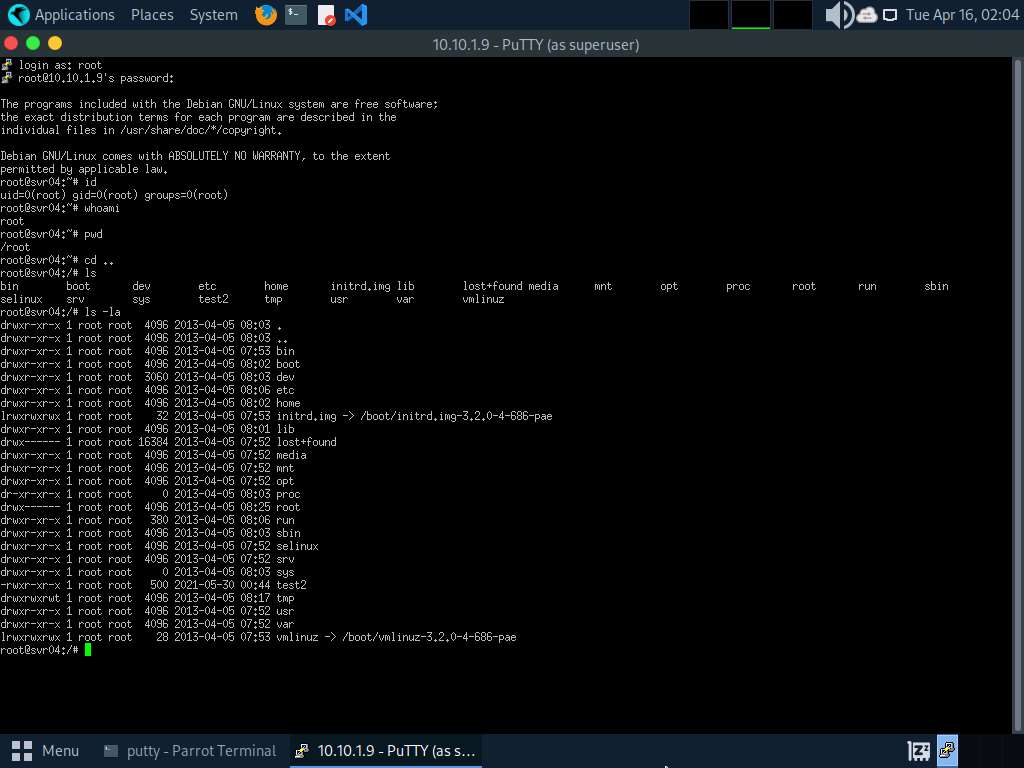

24. You are now in the honeypot, execute various commands to gather intelligence and explore the system.

    • Run id command to retrieve information about the current user and group.

    • To identify the username associated with the active session, execute whoami command.

    • Run pwd to determine the present working directory within the system.

    • Run cd .. to navigate to the root directory.

    • Run ls to list the files available in the directory.

    • Continue the reconnaissance, run ls -la command to list detailed information about files and directories in the current location.

    The Cowrie honeypot has default credentials set to root / ***** (with root as username and taking any character or word as a correct password). After obtaining access to the SSH service, attacker runs the above commands giving him a sense of compromising the target system successfully. However, all these interactions are captured by the virtual environment which was created while setting up Cowrie honeypot, without affecting actual SSH service running on the target system.

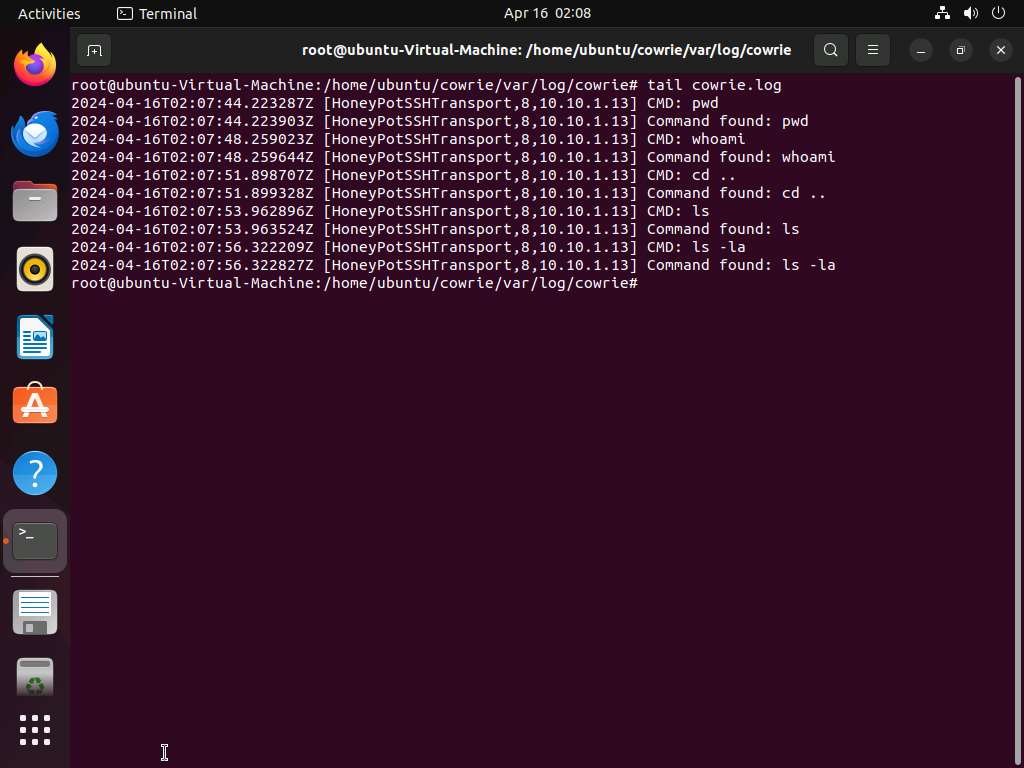

25. Click Ubuntu to switch back to the Ubuntu machine and execute tail cowrie.log command to view the logs. These logs will capture the activities performed by the attacker within the Cowrie honeypot environment, including the execution of commands.



    This will notify you of the intrusion, allowing you to implement specific security measures to sever communication with the attacker’s machine.
